Chain plate rotary grid cleaning machine

Product Usage:

The chain plate rotary grid cleaning machine (referred to as the rotary grid cleaning machine) is suitable for rainwater, sewage pumping stations, water supply lifting pumping stations, and inlet pump rooms in urban sewage treatment plants. It is used to intercept and remove floating debris and is a widely applicable cleaning equipment. Internally, as a temporary grille.

Structure and working principle:

The equipment adopts a chain plate rotary type, consisting of fixed grid bars to form a water passing grid surface. When sewage flows through, debris larger than the grid gap is intercepted, and the rake teeth of the rake tooth plate penetrate into the gap of the grid bars. When the driving device drives the traction chain to rotate, the rake teeth carry the debris intercepted on the grid surface from bottom to top to the slag outlet. The debris falls off by gravity from the discharge port into the conveyor or garbage truck, and then is transported or further treated.

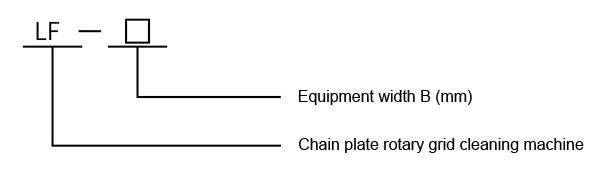

Model Description:

Main features:

1. The driving device is directly driven by a cycloidal pinwheel or helical gear reducer motor, which has the characteristics of low noise, compact structure, and smooth operation;

2. The rake tooth plate is processed by gold, with high precision and beautiful appearance. The distance between the two rake tooth plates is 2.0-2.5m, and a support block is added in the middle, which can effectively remove large debris;

3. The rack is a complete frame structure with strong rigidity, easy installation, and minimal daily maintenance workload;

4. The equipment is easy to operate and can be operated locally/remotely;

5. To prevent accidental overload, mechanical shear pins and overcurrent dual protection are installed to ensure safe and reliable operation of the equipment.
